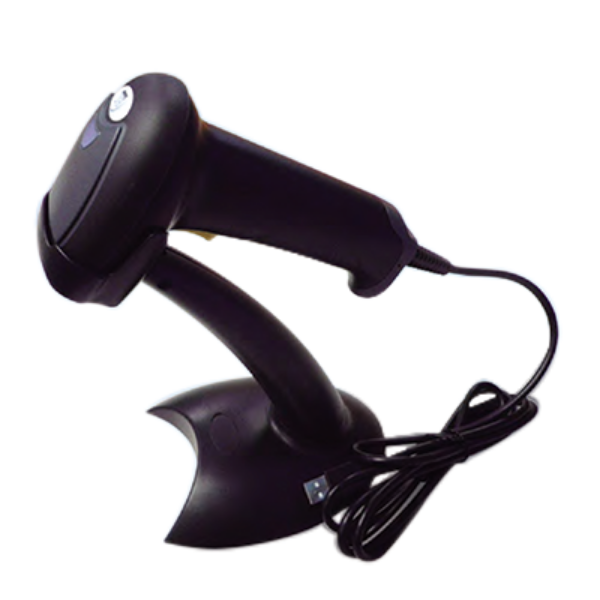

EC-2D-4600 2D Scanner

商品料號（SKU）: 1052

HK$0.00

數量: decrease increase

Cost-effective: Outstanding 2D bar code scanning performance at a competitive pricing
Compact, lightweight, user-friendly design: fast and accurate scanning, elegant and ergonomic design allows for a natural and comfortable grip
Versatile scanning modes: supports both manual and presentation scanning mode with automatic object detection and scanning
Advanced decoding software: cutting-edge decoding technology, able to scan both 1D and 2D barcodes fast and accurately
Reliable data capture ability: supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
Future-proof investment: protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs

Width Of Window/Depth Of Field	5 mil Code39 / 33 - 95 mm (1.3 - 3.7 in.) 13 mil UPC-A / 32 - 255 mm (1.3 - 10.0 in.) 20 mil Code 39 / 35 - 355 mm (1.4 - 14.0 in.) 6.7 mil PDF417 / 30 - 95 mm (1.2 - 3.7 in.) 10mil Data Matrix / 30 - 100 mm (1.2 - 3.9 in.) 15mil Data Matrix / 21 -162 mm (0.8 -6.4 in.) 20mil QR / 23 -200 mm (0.9 -7.9 in.)
Resolution	4 mil
Print Contrast Ratio	Minimum 35% contra
Ambient Light	0 - 100,000LUX
Voltage	4 ~ 5.5 V DC
Power Consumption	Operating Power: 2W; 400 mA @ 5V - typical Standby Power: 0.45w, 90mA@ 5V - typical
Reading Indicator	Green = decoding successful; Red = decoding failed
Operating Temperature	0°C - 40°C
Storage Temperature	-40°C - 60°C
Relative Humidity	5% - 95% relative humidity, non-condensing
Drop	designed to withstand falls from a height of up to 1.0m
Interface	KBW, USB
IP Level	IP40
Motion Tolerance	100mm per second, 13 mil UPC
Dimension (mm	170mm x 66mm x 85mm
Weight	120g

Cost-effective: Outstanding 2D bar code scanning performance at a competitive pricing
Compact, lightweight, user-friendly design: fast and accurate scanning, elegant and ergonomic design allows for a natural and comfortable grip
Versatile scanning modes: supports both manual and presentation scanning mode with automatic object detection and scanning
Advanced decoding software: cutting-edge decoding technology, able to scan both 1D and 2D barcodes fast and accurately
Reliable data capture ability: supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
Future-proof investment: protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs

Width Of Window/Depth Of Field	5 mil Code39 / 33 - 95 mm (1.3 - 3.7 in.) 13 mil UPC-A / 32 - 255 mm (1.3 - 10.0 in.) 20 mil Code 39 / 35 - 355 mm (1.4 - 14.0 in.) 6.7 mil PDF417 / 30 - 95 mm (1.2 - 3.7 in.) 10mil Data Matrix / 30 - 100 mm (1.2 - 3.9 in.) 15mil Data Matrix / 21 -162 mm (0.8 -6.4 in.) 20mil QR / 23 -200 mm (0.9 -7.9 in.)
Resolution	4 mil
Print Contrast Ratio	Minimum 35% contra
Ambient Light	0 - 100,000LUX
Voltage	4 ~ 5.5 V DC
Power Consumption	Operating Power: 2W; 400 mA @ 5V - typical Standby Power: 0.45w, 90mA@ 5V - typical
Reading Indicator	Green = decoding successful; Red = decoding failed
Operating Temperature	0°C - 40°C
Storage Temperature	-40°C - 60°C
Relative Humidity	5% - 95% relative humidity, non-condensing
Drop	designed to withstand falls from a height of up to 1.0m
Interface	KBW, USB
IP Level	IP40
Motion Tolerance	100mm per second, 13 mil UPC
Dimension (mm	170mm x 66mm x 85mm
Weight	120g
