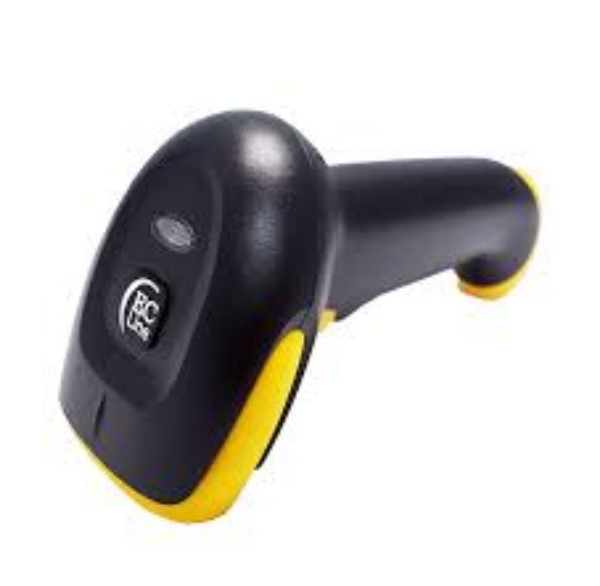

EC-LS-3300 Laser Scanner

商品料號(SKU): 1047
$0.00
decrease increase
Share
Compact design and outstanding performance: Integrated state-of-the-art laser decoding technology enables high-speed and sensitive scanning performance. Reads all linear bar codes: Reads all popular standard 1D barcodes in the world, meeting the requirements of most application conditions. High cost-effectiveness: Enjoys superior performance at a low price, the performance of a laser scanner bought at the price of a red-light scanner. Ergonomic form factor:Comfort handling experience decreases the fatigue of long-time operation. ​ Scan Pattern Single line Scan Speed 72 scan lines/second Scan Angle Horizontal: 46° Print Contrast 35% minimum reflectance difference Pitch, Skew 68°, 52° Light Source Visible Laser Diode 650 nm ± 10 nm Narrow Width / Depth of Field UPC-A 13mil / 0.5” - 10” 10.4mil / 1” -9” 7.5mil / 2” - 8” 5mil / 3” - 5” Resolution 4mil Input Voltage 5VDC ±0.25V Operating Temperature 0°C - 40°C Storage Temperature -40°C - 60°C Humidity 5% to 95% relative humidity, non-condensing Light Levels 4842 LUX (150m candlelight) Drop Designed to withstand 1m drops Dimensions (LxWxH) 110mm x70 mm x 153mm Weight 120g
