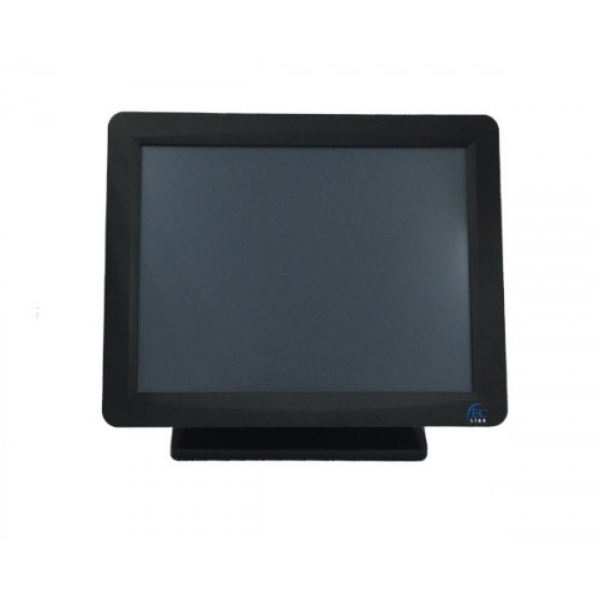

| Display type | 15”LCD Touch monitor |
| Color | Black |
| Optional items | ISO Track 1/2/3 Magnetic Stripe Reader & VFD |
| | |
| Pixel | 0.297(H)×0.297(V) mm |
| Display area | 304.128(H)×228.096(V) mm |
| Contrast | 300:1 |
| View Angle | Horizon：140；Vertical：130 |
| Tilting Angle | 0-90 degrees |
| LCD Panel size | 15 inch TFT LCD |
| Line frequency | 30KHZ–61KHZ |
| Field frequency | 50HZ–75HZ |
| Display color | 16.2M |
| Resolution | XGA 1024*768 @ 75Hz |
| Brightness | 250cd /㎡ |
| Response | 10ms |
| Touch screen | 5 wire Resistive touchscreen |
| Touch interface | USB B type |
| Rear I/O ports | Analog: 15-pin-D-SUB,USB B type touch input from PC, USB A type input From PC,DC 12V input ,DC 12V output Audio : line in (optional) |
| Side I/O port | USB A type port |
| Power Consumption | 25W(max) |
| EMI/ Product Safety | TUV,CE,VCCI,FCC |
| Operating Humidity | 20﹪~80﹪ |
| Operating Temperature | 0 ℃ to 40℃ |
| Storage Humidity | 20﹪~80﹪ |
| Storage Temperature | -20℃ to 60℃ |
| Packing dimension | 440*390*180MM |
| Package: carton box with Foam pa | NW:4.5KG GW: 6.5KG |
| Power adaptor | 100-250V/50-60HZ AC power input ,DC 12V/3A output |
| other function cable | VGA cable, USB B type cable for touch ,Audio cable (audio function optional) |
