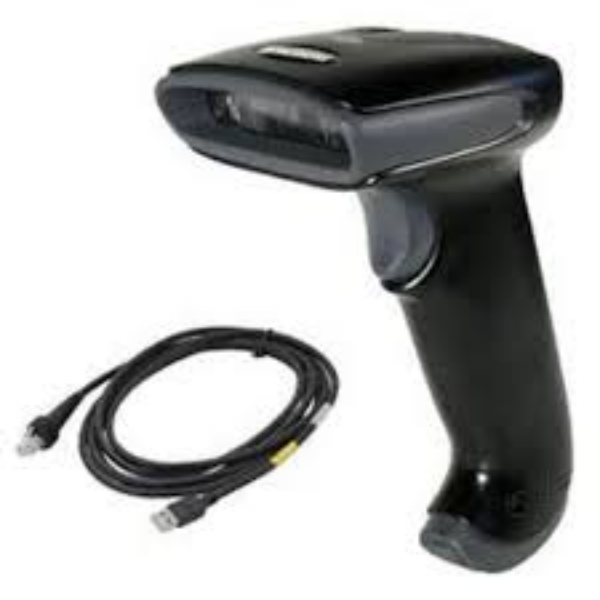

HONEYWELL 1300G Linear Imager -USB, Black

商品料號(SKU): 1195
$140.91
decrease increase
Share

Hyperion 1300g Linear-Imaging Scanner

Linear-Imaging Scanner

Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g provides years of hassle-free scanning, especially in scan-intensive or light industrial applications.

The Hyperion 1300g delivers outstanding linear imaging performance and versatility. Fast intuitive bar code reading out to 18 inches (457mm), and high density bar code reading are both enabled in a single device, eliminating the need to purchase specialty scanners.

With no moving parts to wear out, the Hyperion 1300g is one of the toughest general duty scanners on the market. Designed to keep your operation running smoothly, the Hyperion 1300g is durable enough to hammer nails.

The Hyperion 1300g is the ideal choice for customers who value aggressive scan performance and durability in a general duty handheld linear scanner.

Features

  • Superior Hand-Held Scanning: Increases throughput by offering intuitive and aggressive hand-held scanning performance
  • Highly Versatile: Eliminates the need to purchase specialty scanners by providing the ability to read out to 18 inches (457mm) on 13 mil bar codes, as well as high density bar code reading in a single device
  • Class-Leading Durability: Increases up time and reduces service costs with a reliable design that utilizes no moving parts and full impact resistant bumpers
  • Comfortable, Ergonomic Design: Ensures operator comfort and productivity with a gun-shaped form factor optimized for intensive hand-held scanning
  • Automatic Interface Detection: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection and configuration
  • Remote MasterMind® Scanner Management Software: Provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location

Specifications

Mechanical/Electrical
Dimensions (L x W x H)5.9 x 4.4 x 3.1" (150 x 112 x 79mm)
Weight5.6oz (160g)
Input Voltage5V ± 5%
Operating Power1000mW; 200mA (typical) @ 5V
Standby Power625mw; 125mA (typical) @ 5V
Host System InterfacesMulti-Interface / includes RS232 (TTL +5V, four Signals) / KBW / USB (HID keyboard, serial, IBM OEM);
RS-232C (±12V) and IBM RS485 supported via adapter cable
Auxiliary PortsN/A
Environmental
Operating Temperature32°F to 122°F (0°C to 50°C)
Storage Temperature-40°F to 140°F (-40°C to 60°C)
Humidity0 to 95% non-condensing
Drop/TumbleDesigned to withstand 50 drops on concrete from 5ft (1.5m)
Environmental SealingIP41
Light Levels0 - 70,000 lux (direct sunlight)
Scan Performance
Scan PatternSingle line
Motion Tolerance20in. (51cm) per second
Scan RateUp to 270 scans per second
Print Contrast20% minimum reflectance difference
Pitch, Skew65°, 65°
Decode CapabilitiesReads standard 1D and GS1 DataBar™ symbologies

Hyperion 1300g Linear-Imaging Scanner

Linear-Imaging Scanner

Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g provides years of hassle-free scanning, especially in scan-intensive or light industrial applications.

The Hyperion 1300g delivers outstanding linear imaging performance and versatility. Fast intuitive bar code reading out to 18 inches (457mm), and high density bar code reading are both enabled in a single device, eliminating the need to purchase specialty scanners.

With no moving parts to wear out, the Hyperion 1300g is one of the toughest general duty scanners on the market. Designed to keep your operation running smoothly, the Hyperion 1300g is durable enough to hammer nails.

The Hyperion 1300g is the ideal choice for customers who value aggressive scan performance and durability in a general duty handheld linear scanner.

Features

  • Superior Hand-Held Scanning: Increases throughput by offering intuitive and aggressive hand-held scanning performance
  • Highly Versatile: Eliminates the need to purchase specialty scanners by providing the ability to read out to 18 inches (457mm) on 13 mil bar codes, as well as high density bar code reading in a single device
  • Class-Leading Durability: Increases up time and reduces service costs with a reliable design that utilizes no moving parts and full impact resistant bumpers
  • Comfortable, Ergonomic Design: Ensures operator comfort and productivity with a gun-shaped form factor optimized for intensive hand-held scanning
  • Automatic Interface Detection: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection and configuration
  • Remote MasterMind® Scanner Management Software: Provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location

Specifications

Mechanical/Electrical
Dimensions (L x W x H)5.9 x 4.4 x 3.1" (150 x 112 x 79mm)
Weight5.6oz (160g)
Input Voltage5V ± 5%
Operating Power1000mW; 200mA (typical) @ 5V
Standby Power625mw; 125mA (typical) @ 5V
Host System InterfacesMulti-Interface / includes RS232 (TTL +5V, four Signals) / KBW / USB (HID keyboard, serial, IBM OEM);
RS-232C (±12V) and IBM RS485 supported via adapter cable
Auxiliary PortsN/A
Environmental
Operating Temperature32°F to 122°F (0°C to 50°C)
Storage Temperature-40°F to 140°F (-40°C to 60°C)
Humidity0 to 95% non-condensing
Drop/TumbleDesigned to withstand 50 drops on concrete from 5ft (1.5m)
Environmental SealingIP41
Light Levels0 - 70,000 lux (direct sunlight)
Scan Performance
Scan PatternSingle line
Motion Tolerance20in. (51cm) per second
Scan RateUp to 270 scans per second
Print Contrast20% minimum reflectance difference
Pitch, Skew65°, 65°
Decode CapabilitiesReads standard 1D and GS1 DataBar™ symbologies
*
*
*
